Discover the M5 Servo Motor Series: Unleashing Precision with Power

Discover the M5 Servo Motor Series: Unleashing Precision with Power

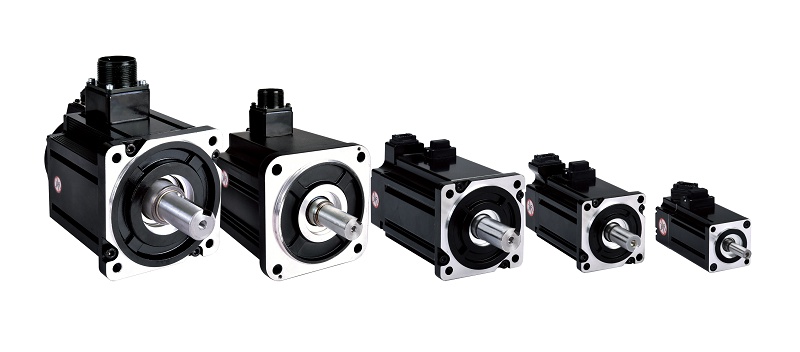

Introducing our revolutionary M5 Servo Motor Series, a pinnacle of high power density engineered for smooth and precise motion. Choose from a versatile range, including battery-powered or battery-less absolute multi-turn encoders, various frame sizes, and inertia levels, meticulously crafted to cater to specific application needs. This series prioritizes cost-efficiency, delivering peak capabilities without compromise. With IP65 rated protection and convenient plug-in connectors, installation is a breeze. The M5 Servo Motor Series proudly holds UL recognition in the US and Canada.

Key Features:

  • New magnetic design ensuring high power density and low cogging torque
  • Frame sizes: 40, 60, 80, 100, and 130mm
  • Power range: 100W to 3kW (up to 11 Nm rated torque)
  • Continuous torque rating up to 11.5 Nm
  • Capable of 300% boost torque and up to 6000 rpm maximum speed
  • Low, medium, and high Inertia motor options for optimized motion profiles
  • Up to 26-bit high-resolution encoders enabling smooth motion across varying speeds
  • IP65 Rated for water and dust resistance
  • Integral brake option
  • UL and CE certified

Wide Selection of Servo Motors:

Explore the M5 Servo Motor Series, available in various sizes from 40mm to 130mm.

Increased Cost Efficiency:

M5 Servo Motors offer abundant options engineered for optimal cost-effectiveness without compromising performance.

High Throughput:

Experience fast motion with speeds up to 6000 RPM and 300% motor peak torque output, enhancing system throughput.

High Torque Density:

Smooth and precise motion at various speeds is achieved with high-resolution encoders, providing high torque density with low cogging.

Customisation:

Tailor M5 Servo Motors to different applications and OEM designs with our wide range of mechanical customizations. Contact Engineering for inquiries.

Available Part Numbers:

Low Inertia Applications:

  • SM3L-042AB_DV: 40mm Servo Motor, 100W, with Absolute Encoder (17-bit Battery-less)
  • SM3L-061AB_DV: 60mm Servo Motor, 200W, with Absolute Encoder (17-bit Battery-less)
  • SM3L-062AB_DV: 60mm Servo Motor, 400W, with Absolute Encoder (17-bit Battery-less)
  • SM3L-083AB_DV: 80mm Servo Motor, 750W, with Absolute Encoder (17-bit Battery-less)
  • SM3L-084AB_DV: 80mm Servo Motor, 1000W, with Absolute Encoder (17-bit Battery-less)
  • SM3L-102A_ _UV: 100mm Servo Motor, 1000W, with Encoder Option (21-bit magnetic/23-bit optical)
  • SM3L-103A_ _UV: 100mm Servo Motor, 1500W, with Encoder Option (21-bit magnetic/23-bit optical)
  • SM3L-104A_ _UV: 100mm Servo Motor, 2000W, with Encoder Option (21-bit magnetic/23-bit optical)
  • SM3L-105A_ _UV: 100mm Servo Motor, 2500W, with Encoder Option (21-bit magnetic/23-bit optical)

Medium Inertia Applications:

  • SM3M-062AB_DV: 60mm Servo Motor, 400W, with Absolute Encoder (17-bit Battery-less)
  • SM3M-083AB_DV: 80mm Servo Motor, 750W, with Absolute Encoder (17-bit Battery-less)
  • SM3M-132A_ _NUV: 130mm Servo Motor, 1000W, with Encoder Option (21-bit magnetic/23-bit optical)
  • SM3M-133A_ _UV: 130mm Servo Motor, 1500W, with Encoder Option (21-bit magnetic/23-bit optical)
  • SM3M-134A_ _UV: 130mm Servo Motor, 2000W, with Encoder Option (21-bit magnetic/23-bit optical)

High Inertia Applications:

  • SM3H-132A_ _UV: 130mm Servo Motor, 850W, with Encoder Option (21-bit magnetic/23-bit optical)
  • SM3H-133A_ _UV: 130mm Servo Motor, 1300W, with Encoder Option (21-bit magnetic/23-bit optical)
  • SM3H-134A_ _UV: 130mm Servo Motor, 1800W, with Encoder Option (21-bit magnetic/23-bit optical)

Accessories:

Explore applicable cables, drives, power supplies, and gearheads compatible with the High Power Density Servo Motors in the "Compatible Products" section of each webpage.

Downloads:

Access 2D Drawings and 3D Models on the respective product pages.

M5 Cables:

Discover compatible power, brake, and encoder cables for the High Power Density Servo Motors.

For further inquiries, contact our Applications Team. Elevate your precision motion control with the M5 Servo Motor Series - Redefining Industry Standards.
