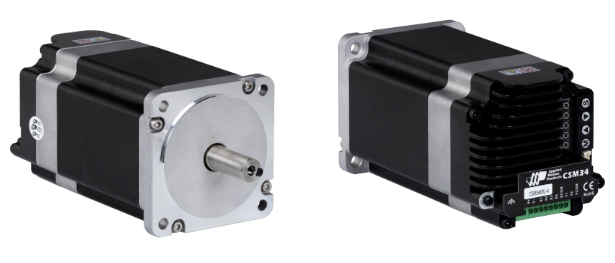

NEW! Introducing Applied Motions CSM34 Integrated StepSERVO Conveyor Smart Motor
Introducing the CSM34 Integrated StepSERVO Conveyor Smart Motors, now available through Mclennan, one of the premier distributors of Applied Motion Products. Designed specifically for conveyor belt applications, these gearless DC StepSERVO motors offer a fully integrated design that eliminates the need for separate cabinets and minimizes wiring configuration, allowing for a more streamlined setup process.
With a high torque output and gearless design, the CSM34 motor is built to outlast traditional AC induction or brushless motors and gearheads, making it an excellent investment for businesses looking to optimize their conveyor systems. Operators can easily configure, control, and monitor the system in real time with the integrated control panel and status display on the motor, without the need for external controllers or wiring.
The CSM34 Integrated StepSERVO Conveyor Smart Motor comes in two stack sizes, the 3-stack and the 5-stack motor, providing flexibility to customize the motor's length and performance to meet specific application requirements. This motor is suitable for a variety of industries that require motorized conveyor belts, such as lab automation, medical equipment, labeling machinery, small size package machinery, and general production and automation lines.
Key features of the CSM34 Integrated StepSERVO Conveyor Smart Motor include:
Features
- Integrated Motor and Drive
- StepSERVO close loop position
- Conveyor speed controller
- Gearless motor solution
- Up to 6Nm torque output
- Direct plug-in connection
- ”On the fly” speed change
- Speed settings on the motor
- No external control panel required
- 5 digit, 7 segment motor status display
- Direction and motion control inputs
- 2 configurable speed inputs
- Push button configuration and job motion
- Quick installation
As a trusted distributor of Applied Motion Products, Mclennan is proud to offer the CSM34 Integrated StepSERVO Conveyor Smart Motors, providing businesses with a reliable and efficient solution for their conveyor belt needs. Contact us today to learn more and place your order.
Available Part Numbers:
