NTP Planetary Gearbox - Torsional backlash minimized, absorption of external forces improved
WITTENSTEIN United Kingdom has introduced the NTP, the latest addition to their alpha Value Line of planetary gearboxes. The NTP stands out in cost-sensitive applications for precision gearboxes due to its minimized torsional backlash, resulting in improved motion and repeat accuracy, as well as its ability to absorb high external forces with an extra-stable roller bearing at the output. The NTP also boasts enhanced synchronization properties achieved through optimized micro geometry of the teeth.
Available in four different sizes and with maximum torques from 56 to 800 Nm and gear ratios from 4 to 100, the NTP has a torsional backlash of ≤ 5 arcmin. Additionally, approved food grade lubricants can be supplied for applications in the food industry. The NTP is easily configurable with the sizing tool cymex® and can be recognized by its blue housing with a surrounding design element.
The success of the NTP product series is attributed to the combination of several best-in-class features, such as low torsional backlash with higher torque density, high tilting moments with improved synchronization behavior, and high torsional stiffness with increased absorption of external forces. The NTP's versatility makes it easier for machine manufacturers to use WITTENSTEIN gearboxes in axes with diverse requirements, with differentiated prices and performance levels.
The NTP planetary gearbox, available through Mclennan, caters to a growing number of application segments in the precision gearbox market, where high performance is important but cost efficiency must also be considered. WITTENSTEIN's eye on the market ensures that the NTP is suitable for various industries, from handling to automation, packaging technology, and machine tools.

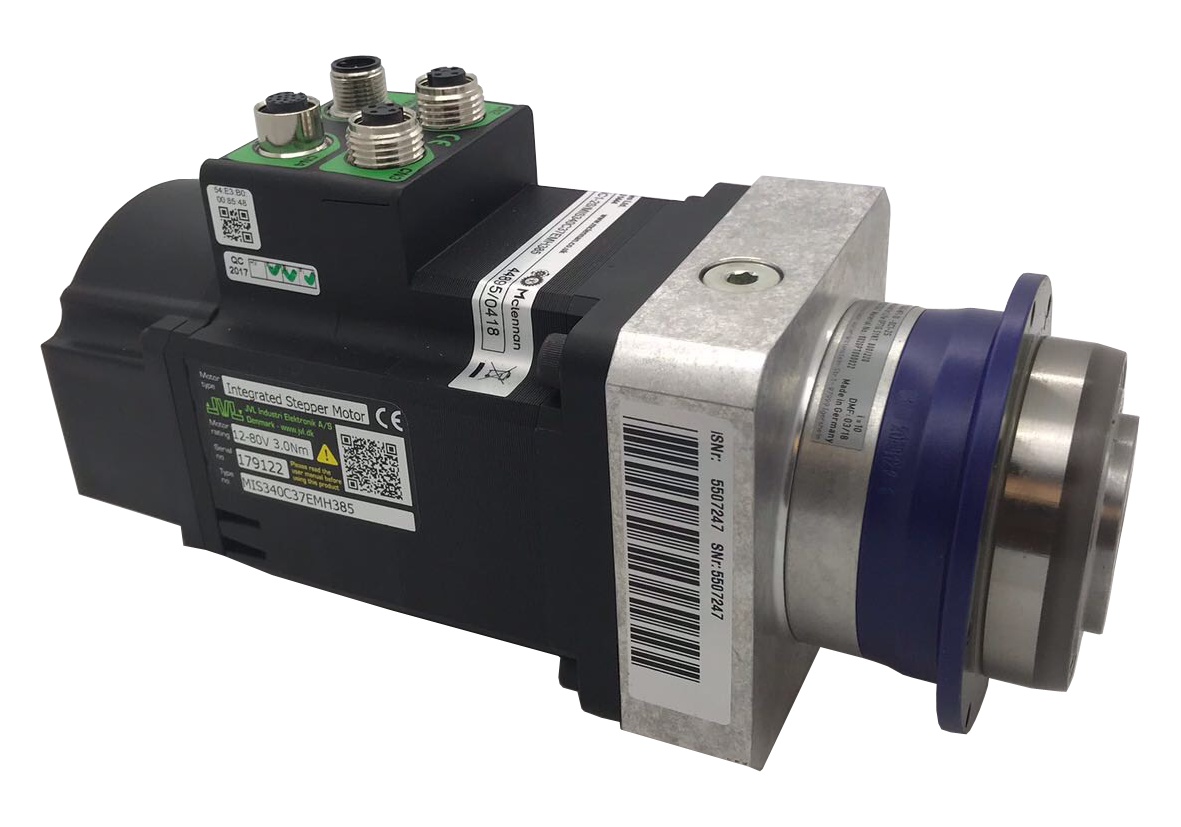

The NTP can be fitted to a number of integrated stepper or servo motors and supplied as part of a complete motion package.
For more information please contact us on +44 (0) 1252 531 444 or visit www.mclennan.co.uk
